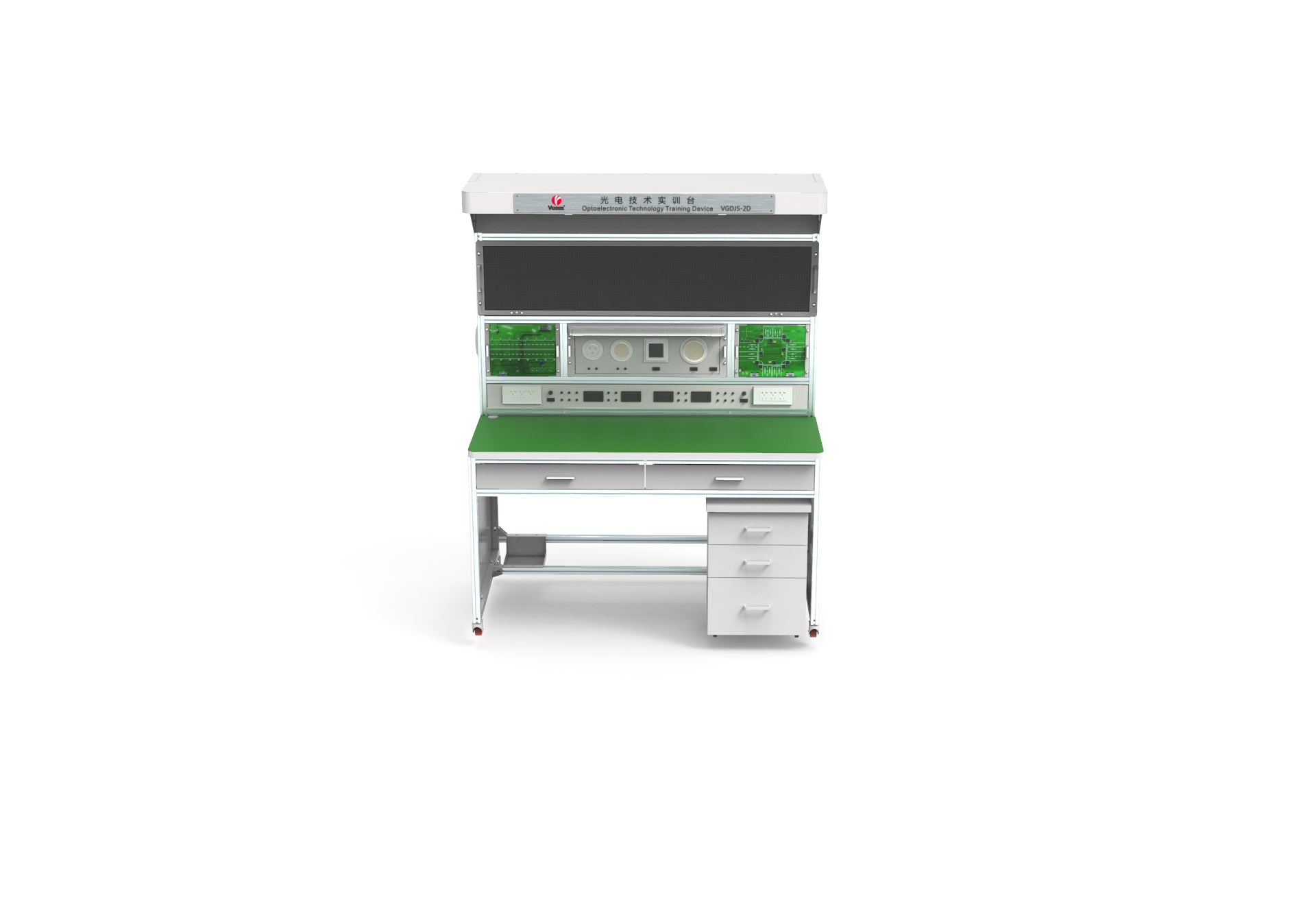

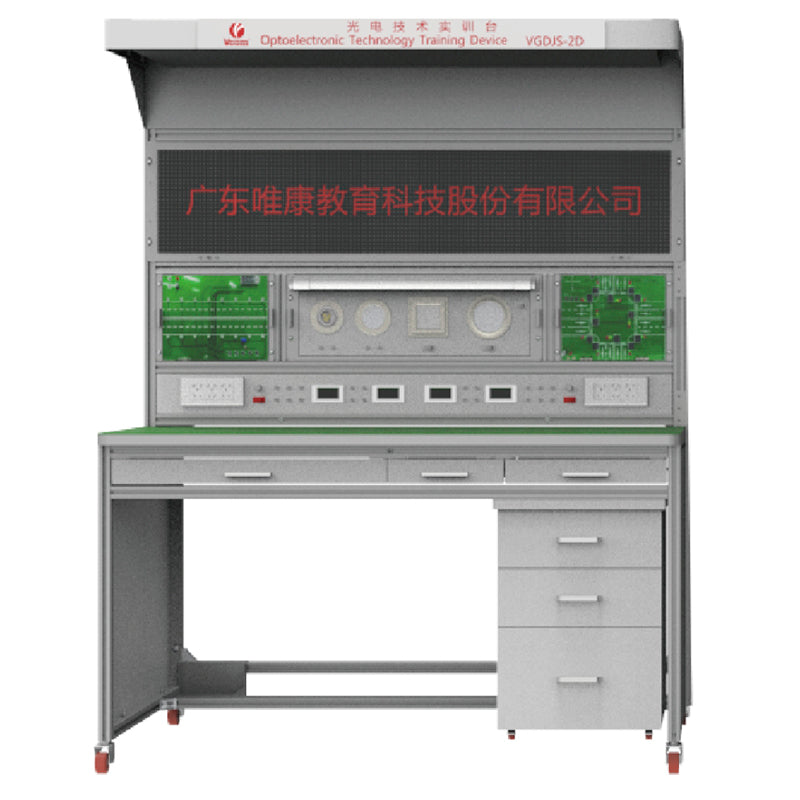

Optoelectronic Technology Training Workstation

Optoelectronic Technology Training Workstation

Regular price $56,045.71
Regular price $61,650.27 Sale price $56,045.71
Sale Sold out
Shipping calculated at checkout.

I. Product Overview
This optoelectronic technology training workstation complies with the technical requirements and standards of the new "Optoelectronic Technology" project in the WorldSkills Competition. It integrates technologies such as lighting engineering, optoelectronic sensors, LED dimming, LED driver power supplies, and LED displays into one comprehensive training platform for the application and configuration of optoelectronic technology. By completing training operations, operators can master the skills of optoelectronic technology applications, meeting the professional skill requirements specified by the teaching standards of optoelectronic-related majors.
II. Product Specifications
1. Specifications: 1350mm*800mm*1730mm (LWH).
2. Structure: Ergonomic desk structure with a modular design. The frame is made of 30*30mm and 30*60mm aluminum alloy profiles. The upper and lower frames can be independently disassembled for easy assembly and disassembly.
3. It can accommodate 1-2 people operating simultaneously.
III. Product Configuration
1. 1 set of training workstation body: Includes a wooden desktop with a green anti-static mat, 2 drawers, 1 keyboard tray, 1 main power leakage switch, 1 three-plug socket, etc.
2. 1 set of power module: Double workstation power supply design with independent switches. Includes 2 digital DC voltage meters, 2 digital DC current meters, fuses, an AC220V strong power output with a 118-type three-position socket panel, and DC+5V and DC+12V weak power outputs with 2mm banana sockets.
3. 1 set of lighting installation module: Adjustable panel angle from 0 to 15 degrees with an independent power control switch and two-pin plug.
4. 1 set of display module: Equipped with measurement ports and control switches for assembling LED screens and editing and debugging information systems.
5. 1 set of modular kit: Includes a basic optoelectronic technology training module, an intelligent streetlight training module, a traffic light training module, and a single-color dot matrix screen training module.
6. 1 set of optoelectronic accessories kit: Includes communication conversion lines and control cables.
7. 1 set of top module of training workstation: Equipped with a transparent acrylic panel and a foldable blackout curtain.
8. 1 piece of mobile storage cabinet: Three-layer, drawer-type.
9. Power configuration: Equipped with an AC220V (50/60Hz) single-phase main power leakage protection control switch, with a maximum power of 700W.
