Information Module

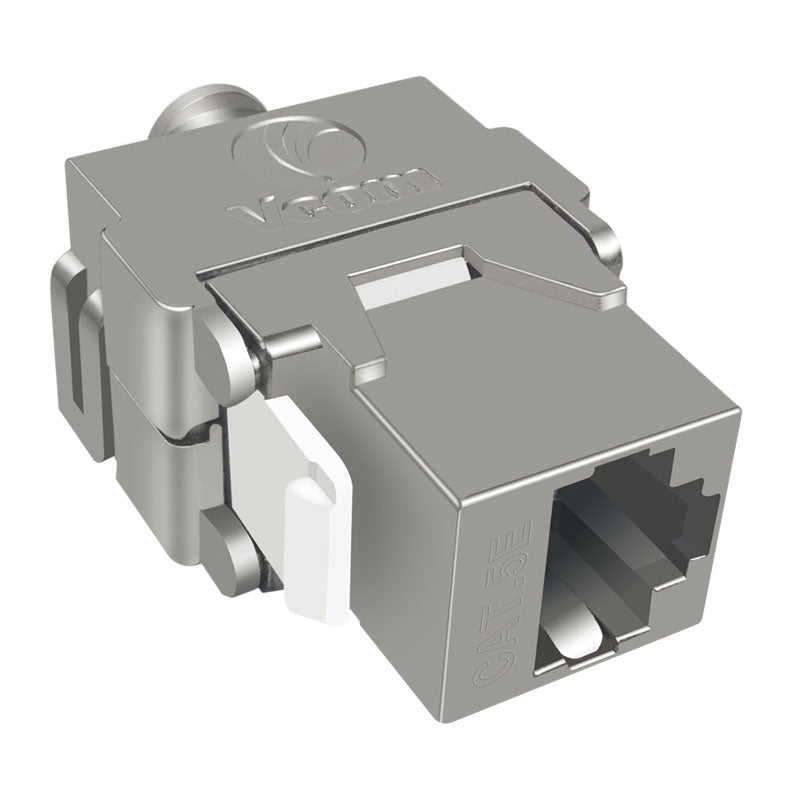

Product Name: Category 5e Tool-Free Shielded Information Module
Description:
1.High-quality materials: Made from ABS impact-resistant plastic, IDC terminals silver-plated at 1.3 microns, compatible with 24, 23, and 22 AWG cables;
2.Excellent anti-oxidation performance: Socket cores adopt 50U gold plating, with over 1500 insertion and removal cycles without wear, punch-down ports supporting over 250 terminations;
3.Good compatibility: Supports T568A and T568B wiring sequences, performance meeting the requirements of 100 Mbps Ethernet over copper cabling;
4.Easy installation: Can be used for information points in work areas and punch-down information modules in modular patch panels, making installation simpler and more consistent. Material: High-pressure resistant, flame-retardant plastic
Fire Rating: UL-rated 94V-0
Operating Temperature: -10°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity: 90%
Insertion/Removal Cycles: ≥1500 times
Punch-down Ports: Over 250 terminations
Tensile Strength: 133N/min
Connector Retention Force: 30lbs (13.62kg)

Rated Current: 1.5A (20°C)
Minimum Insulation Resistance: 500M OHMS
Insulation Voltage: 1000VAC RMS
Contact Retention Pressure: 100G/min (achievable)
Minimum DC Stability Voltage: 1000VAC RMS (60Hz contact to contact), 1500VAC RMS (60Hz surface conduction)
