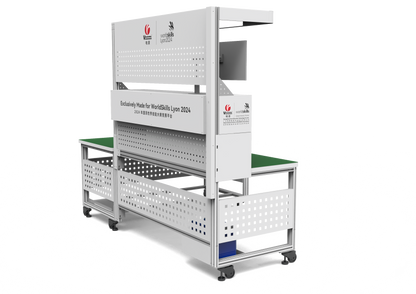

Intelligent Training Device for Electronics

Intelligent Training Device for Electronics

Regular price $10,714.29
Regular price $11,785.71 Sale price $10,714.29
Sale Sold out
Shipping calculated at checkout.

I. Product Description:
The Intelligent Training Device for Electronics is designed with a focus on digitalization and intelligence. The product is highly versatile, with a clean and elegant design that is flexible, easy to use, and durable. It closely integrates with the needs of competitions and teaching by incorporating software features that emphasize digital assistance, significantly enhancing the management efficiency of competitions and teaching.

The software functions are used for managing electronics technology competitions and can also be utilized in teaching. It meets the specialized requirements for both competitions and teaching, achieving a seamless integration of equipment for competitions, training, and teaching, and adapting to various usage scenarios.

II. Product Specifications:
The tool area includes an AC power area, a 10-inch intelligent control screen, an oscilloscope, an adjustable power supply, and a signal generator. The AC power area is distributed on the left and right sides, with a total of 12 national standard 5-hole sockets. It can be combined with the table body of the same aluminum profile frame for free combination.

Overall Dimensions: 2250mm * 1570mm * 1815mm (Length * Width * Height)
Main Workstation Body Dimensions: 1500mm * 800mm * 1815mm (Length * Width * Height)
Extension Module Dimensions: 1540mm * 750mm * 760mm (Length * Width * Height)

III. Product Configuration:
1. Workstation Body:
(1) Made of aluminum alloy profiles and sheet metal, with the upper and lower frame bodies independently detachable for easy assembly and disassembly.
(2) Overall Dimensions: 2250mm * 1570mm * 1815mm (Length * Width * Height)
(3) Equipped with an anti-static mat

2.Power Supply:
(1) AC 220V, 50Hz.

3.Isolation Transformer:
(1)AC 220V, 3000W.
(2)Supplies power to 12 sockets and other devices through an isolation transformer to enhance equipment safety.

4.Power Socket Module:
(1)12-way 220V power socket module
(2)Installed on both sides of the tool area, each with 6 sockets for easy use

5.Oscilloscope:
(1)4 channels with a 100MHz analog bandwidth.
(2)Real-time sampling rate up to 1G Sa/s.
(3)Waveform capture rate of 30,000 wfms/s.
(4)Real-time hardware waveform recording and playback, capable of recording 60,000 frames with multi-level grayscale display.
(5)Low noise, with an ultra-wide vertical dynamic range from 1 mV/div to 10 V/div.
(6)7-inch WVGA (800*480) TFT widescreen with vivid colors, low power consumption, and long life.

6.Signal Generator:
Sine Wave: 1pHz~ 20MHz
Square Wave: 1pHz~ 15MHz
Triangle Wave: 1uHz~ 15MHz
Pulse Wave: 100uHz~6MHz
Arbitrary Wave: 1pHz~ 6MHz
Frequency Counter: 1Hz~ 100Mhz

7.Programmable DC Power Supply:
(1)Three-channel output.
(2)CH1\CH2
Output Voltage: 0-30V
Output Current: 0-3A
Resolution: 10mV;1mA
Programming Accuracy: Voltage ≤0.1%+30mV; Current ≤0.5%+2mA
Readback Accuracy: Voltage ≤0.1%+30mV; Current ≤0.5%+2mA
Ripple and Noise: Voltage ≤lmVrms; Current ≤3mArms
(3)CH3
Output Voltage: 1.8V/2.5V/3.3V/5.0V
Output Current: 3.2A

8.10-Inch Intelligent Control Screen:
(1) Android system, Quad-core 1.6G, 2G RAM, 8G ROM, with WiFi function.
(2) Installed with the Electronics Technology Training Platform Auxiliary System (V1.0) slave terminal.

9.Adjustable LED Light:
(1)Adjust the brightness to reduce eye strain.

10.Human Body Sensing Module:
(1)Detects human presence (including in a stationary state).
(2)In conjunction with software, it can automatically turn lights on and off.

11.Storage Cabinet Function:
(1)Detachable to increase desktop space.
(2)Sliding door design saves space when opening and closing.

12.Mobile Cabinet:
(1)Lockable, can store various tools
(2)Equipped with wheels for easy positioning

13.Extension Monitor:
(1)Includes monitor, USB to HDMI, and swivel arm mount.
(2)The screen can be pulled to any position and rotated 90°, suitable for multi-screen computer expansion, viewing code, and schematics.
(3)Easily connected to a computer via USB for display expansion.

IV. Product Functions:
(1) Meets the requirements for common electronics technology tools.
(2) Enables digital teaching and digital competition assistance.
(3) Provides digital control of the equipment.

V. Product Features:
Improved equipment safety through the use of an isolation transformer.
Integrated equipment for competition and teaching, reducing costs.
Automatic lighting control, saving energy.
