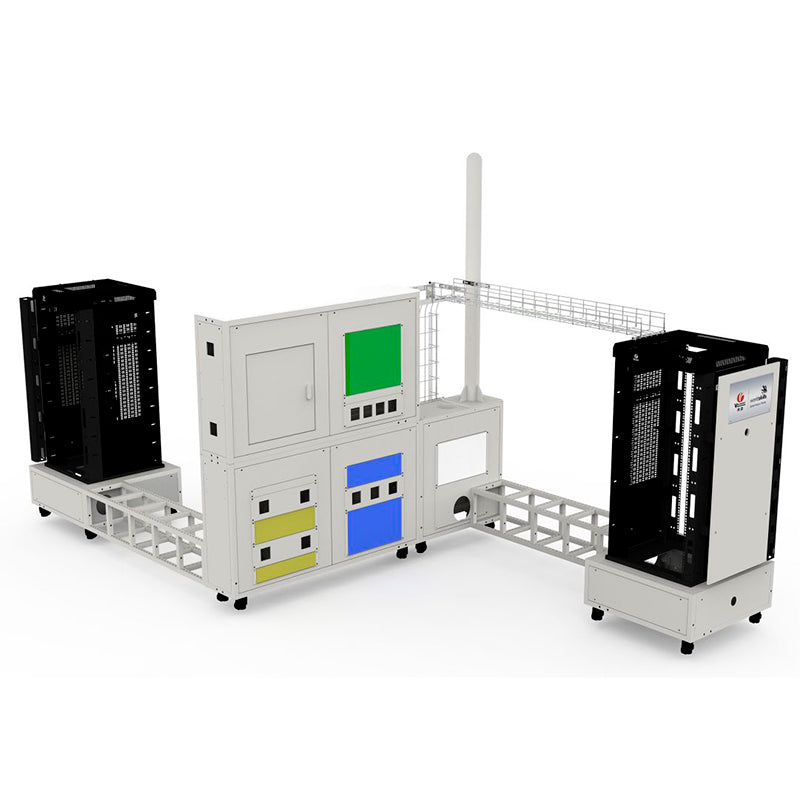

Intelligent Information Network Training Workstation

Module Name: Information Network Device Wall
Specifications: 4420 * 2100 * 2200mm
Features:
The Simulation Engineering Wall of Information Network Cabling simulates the working environment of building engineering integrated cabling and data centers, aligning with the latest IDC data center installation standards.
It is a multifunctional, expandable hands-on workstation for information network cabling, developed with a modular design for minimal unit modules.
It meets the training and teaching content of traditional integrated cabling subsystems and the competition standards of the WorldSkills "Information Network Cabling" project at the school, municipal, provincial, national, and world levels.
This workstation serves as a training and assessment platform for cultivating and selecting high-quality integrated cabling talents.
It can be expanded to include teaching content on intelligent buildings, smart homes, and IoT engineering technology skills training, further increasing the platform's utilization rate.
Configuration:
5 sets of high-strength metal frames
19 multifunctional boards
2 network cabinet base modules

Module Name: 24U Rack Cabling Device
Specifications: Length 600mm * Width 600mm * Height 1380mm
Features:
1. 19-inch black, mesh metal doors at the front and back, accommodating 24 1U devices.
2. Multifunctional mounting holes on both sides of the cabinet, along with vertical cable management channels.
3. Made of high-quality cold-rolled steel, columns: 2.0mm, others 1.2mm, surface sandblasted, degreased, fireproof, rustproof, and electrostatically sprayed.
Configuration:
1. 2 sets of 24U open cabinets
2. 2 vertical cable management channels
3. 240 cabinet screws

Module Name: Protective Wall-mounted Network Cabinet
Specifications: Length 600mm * Height 600mm * Depth 400mm
Configuration:
1 12U cabinet,
40 sets of cabinet screws.
Product Function:
Used in network cabling rooms, floor distribution rooms, etc.

Module Name: Steel Wire Cable Rack
Specifications: Overall length 2500mm * Width 200mm * Height 100mm
Features:
1. Mesh structure with galvanized surface design.
2. Equipped with standard connection components, it can be combined into the required shape according to the environment.
3. Strong load-bearing capacity, able to support over 100 kg per square meter.
Configuration:
1. 2.5-meter main body of cable rack,
2. 2 special brackets,
3. 1 set of connectors.

Module Name: Information Network Device Pole
Specifications: Height 1500mm * Width 100mm cylindrical
Features:
1. Uses actual engineering project models to simulate the construction of high-pole equipment in engineering projects.
2. Considering the load-bearing capacity of high-pole device installation equipment, an embedded fixing method is used at the bottom of the pole device to fix the high-pole device to the connection cabinet.
3. Simulates the safe construction process of pole lines, with safety rope fixing attachments at the top of the pole device to ensure safety during construction.
Product Function:
1. Conduct pole line construction, install overhead optical cables, and connection equipment, etc..
2. Install antenna units for network construction implementation.
3. Install security devices, such as network security cameras, etc..
