Patch Cord

Patch Cord

Обычная цена $2.75 USD
Обычная цена $3.03 USD Цена со скидкой $2.75 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.
Specification
Color

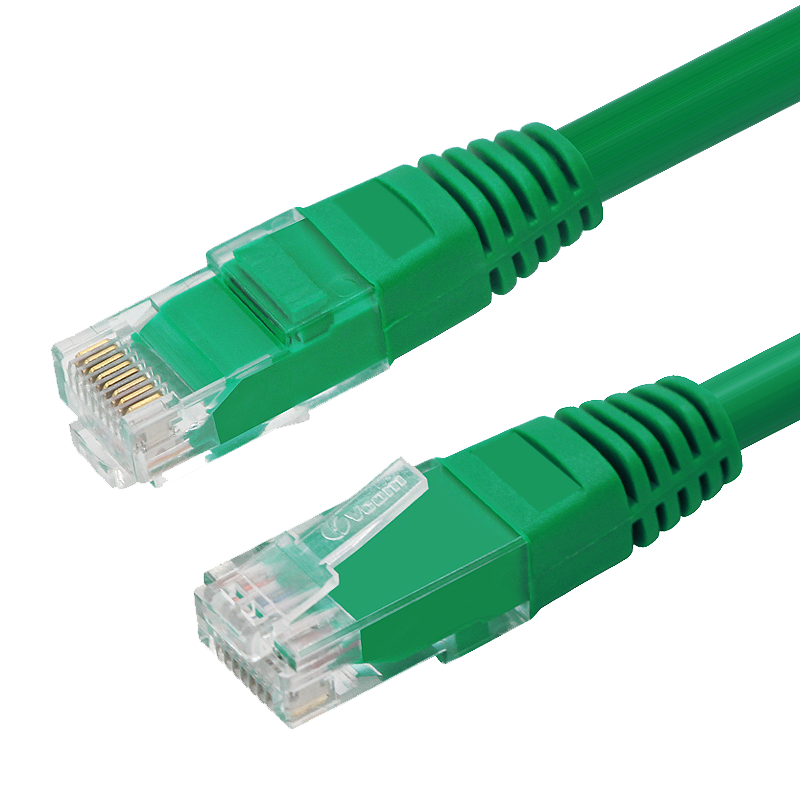

Product Name: Cat5e Shielded Patch Cord Product Description: The Cat5e shielded patch cord is composed of 4 pairs of 24AWG multi-strand bare copper conductors (insulated with PE material), wrapped with Mylar tape, aluminum foil Mylar tape shielding, grounding wire, and molded with RJ45 plugs. The outer sheath is made of PVC material that meets UL94V-0 flame retardant standards, matching the color of the protective sheath. The performance exceeds the TIA/EIA568-B Cat5e channel performance requirements.
Plug: RJ45 plugs with 50μinch gold plating
Wiring Scheme: 568B-568B, 568A-568B (cross-wiring), 568A-568A
Color: Color-coded jacket and cable
Bending Radius: 4 times the cable diameter
Plug and Play Cycles: Minimum of 2000 cycles
Tensile Test: Can withstand a tensile force of 25lbs (11.35kg)
Operating Temperature: -40℃ to 70℃
Tensile Strength: 133N
Dielectric Withstand Voltage: Up to 1000VAC
Insulation Resistance: 500Mohms
Continuous Resistance: 20Mohms
