MOU45EAF-WH

MOU45EAF-WH

Regular price $1.67
Regular price $1.83 Sale price $1.67
Sale Sold out
Shipping calculated at checkout.
Specification
Color

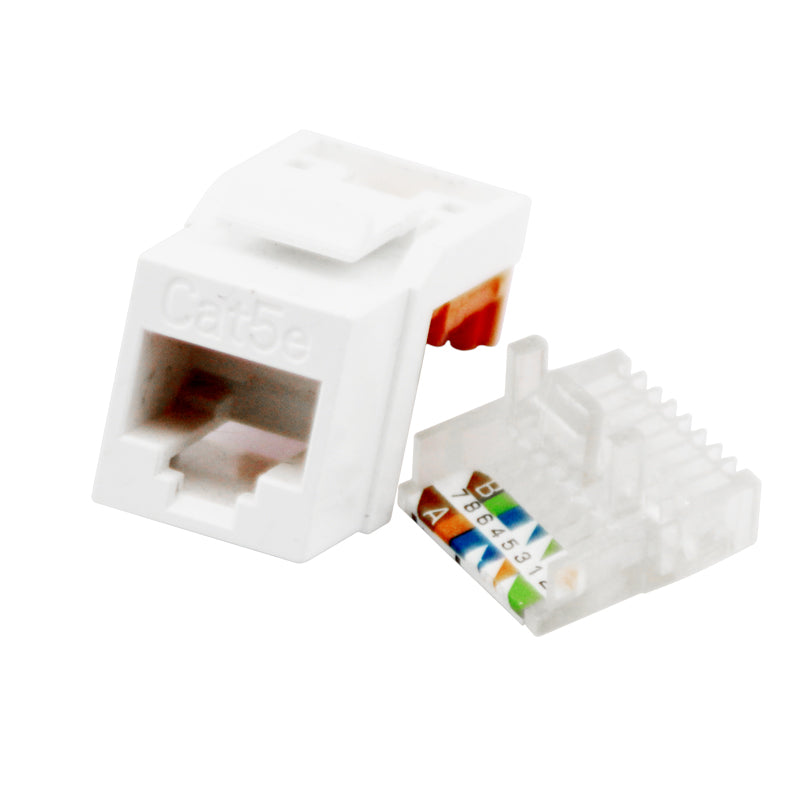

Product Name: Category 5e Tooless Unshielded Information Module (the Product of WorldSkills)
Description:
1. High-Quality Materials: Made from ABS impact-resistant plastic, IDC terminals are silver-plated at 1.3 microns, compatible with 24, 23, and 22 AWG cables.
2. Excellent Anti-Oxidation: Socket core is 50U gold-plated, supporting more than 1500 insertion and removal cycles without wear. Punch-down ports support over 250 terminations.
3. Good Compatibility: Supports T568A and T568B wiring sequences, meets the requirements of 100 Mbps Ethernet over copper cabling.
4. Easy Installation: Suitable for information points in work areas and modular patch panels. The tool-free design makes installation simpler and more consistent.
Materials: High-pressure resistant, flame-retardant plastic
Fire Rating: UL-rated 94V-0
Operating Temperature: -10℃ to 60℃
Storage Temperature: -40℃ to 70℃
Humidity: 90%
Insertion/Removal Cycles: ≥1500 times
Punch-Down Port Terminations: Over 250 times
Tensile Strength: 133N/min
Connector Retention Strength: 30 lbs (13.62 kg)
Rated Current: 1.5A (at 20℃)
Minimum Insulation Resistance: 500M ohms
Insulation Voltage: 1000VAC RMS
Contact Retention Force: 100G/min (up to)
Minimum DC Stability Voltage: 1000VAC RMS (60Hz contact to contact), 1500VAC RMS (60Hz surface conduction)
